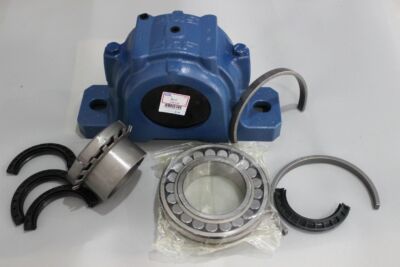

Dimensions
BEARING SEAT
Db 150 mm Diameter of bearing seat
G7 Tolerance class of bearing seat diameter
Cb 61 mm Width of bearing seat
H1 95 mm Centre height of bearing seat
OUTSIDE DIMENSIONS
Db 97.5 mm Bore diameter
A 125 mm Overall width
A1 90 mm Foot width
G1 1/8-27 NPSF Thread of relubrication holes
H 182 mm Overall height
H2 32 mm Foot height
L 320 mm Overall length
J 260 mm Distance between attachment bolts
N 28 mm Length of attachment bolt hole
N1 22 mm Width of attachment bolt hole
SEAL GROOVES
A3 98 mm Inside width between seal grooves
A4 5 mm Width of seal groove
A5 9 mm Distance to seal groove back face
A6 13 mm Width at bore diameter
Dc 106 mm Diameter of seal groove
DOWEL PINS
J6 292 mm Distance between dowel pins
J7 33 mm Axial offset of dowel pins
N4 max. 8 mm Diameter of dowel pins
